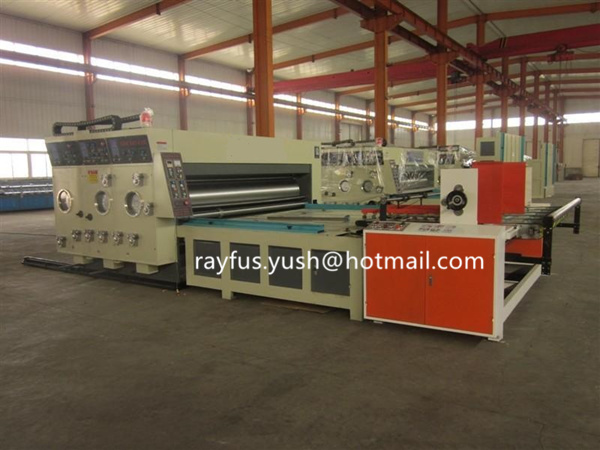

    Semi Auto Carton Box Manufacturing Machine / Flexo Printer Slotter Machine Chain Feeder

    Ask Lasest Price
    Brand Name : YUSH
    Model Number : YKM
    Certification : CE
    Price : USD 15,000~100,000 per set
    Payment Terms : T/T
    Supply Ability : 15 sets per month
    Delivery Time : 30~60 working days
    • Product Details
    • Company Profile

    Semi Auto Carton Box Manufacturing Machine / Flexo Printer Slotter Machine Chain Feeder

    Semi-auto Flexo Printing Slotting Die-cutting Machine, chain feeder, for carton box manufacturing


    Semi-auto Flexo Printing Slotting Die-cutting Machine

    (chain feeding, 1~4 colors printing)


    Functional Specifications:

    1. This machine can do 1~4 colors printing, creasing, edge-cutting, slotting, corner-cutting, die-cutting, creasing, etc. at one process.
    2. Electric appliances of whole machine adopt excellent domestic products.
    3. Adopt cross slider transmission. Adopt spouting style cycle lubricate.
    4. All rollers chrome plated, high grade rubber and anilox roller, print elegant pattern.
    5. Adopt pneumatic uplift plate, pneumatic lock close, electric equal ink, pneumatic supply ink, electric separate and retune with pneumatic brakes, etc.
    6. Phase adjustment adopts planet gear structure, digital input.
    7. Slotting unit four knives combined adjustment for carton box height.
    8. Die-cutting unit equipped with auto repairing device for longer use life.
    9. Removable Slotting device to be installed on Rotary Die-cutter unit to save cost as optional.
    10. Auto Feeder for Chain type machine to save labor as optional.

    Technical Parameters:


    Model920122414281632
    Max Sheet Size920*2000mm1200*2400mm1450*2800mm1600*3200mm
    Min Sheet size300*500mm360*500mm450*600mm500*600mm
    Max Printing Area920*1800mm1200*2200mm1450*2600mm1600*3000mm
    Min Slotting Distance

    120*120*120*120mm

    120*120*120*120mm140*140*140*140mm140*140*140*140mm
    Max Slot Depth230mm300mm360mm400mm
    Max Die-cutting Size800*1800mm1100*2200mm1350*2600mm1500*3000mm
    Max Stacking Height1500mm1500mm1500mm1500mm
    Design Speed60pcs/min60pcs/min60pcs/min60pcs/min
