    Flute Type 1100mm Single Facer Corrugated Machine

    Ask Lasest Price
    Brand Name : YUSH
    Model Number : DW-C
    Certification : CE
    Price : USD 150,000~300,000 per set
    Payment Terms : T/T
    Supply Ability : 15 sets per month
    Delivery Time : 30~60 working days
    • Product Details
    • Company Profile

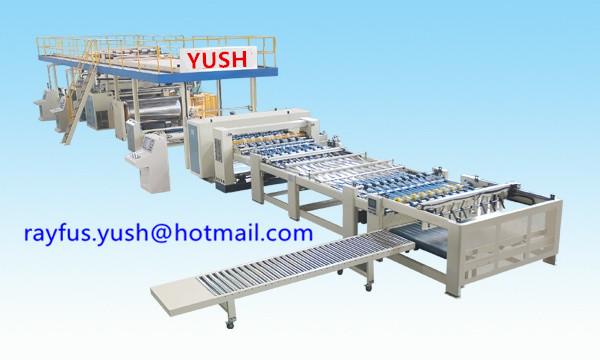

    Flute Type 1100mm Single Facer Corrugated Machine

    Single Facer Corrugator Line, high-speed, various flute type, 2-layer corrugated cardboard making

    DW-C Single Facer Corrugator Line


    Functional Specifications:

    1. This line consists of three machines, Hydraulic Shaftless Mill Roll Stand, Auto Splicer, Preheater, SF-C Fingerless type Single Facer, Overhead Conveyor Bridge, NC Single-faced Slitter Cutter Stacker, with Glue Mixer and Pump, etc.
    2. Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through laminating Machine to laminate to 3/5-ply corrugated sheet, press and fix.
    3. The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
    4. It is the ideal and perfect equipment for high efficiency color pritning and packaging industry.

    Technical Parameters:


    ModelDW-120SDW-150C
    Max Effective Width1100~2200mm1100~2200mm

    Max Paper Roll Diameter

    1500mm1500mm
    Max Paper Roll Weight3000kg3000kg
    Corrugating RollerΦ320mm, 48CrMo alloy steel, Chrome-platedΦ320mm, 48CrMo alloy steel, Tungsten-carbide
    Flute Type

    made to customer request

    made to customer request
    Slitting Knife4 pairs4pairs
    Cutting Length300~9999mm300~9999mm
    Max Stacking Length1300mm1300mm
    Design Speed120m/min150m/min
    Working Speed80~100m/min (Steam heating)100~130m/min (Steam heating)


    YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

    Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
