Brand Name : | YUSH |
Model Number : | QF |
Certification : | CE |
Price : | USD 6,000~10,000 per set |
Payment Terms : | T/T |
Supply Ability : | 30 sets per month |
Delivery Time : | 15~30 working days |

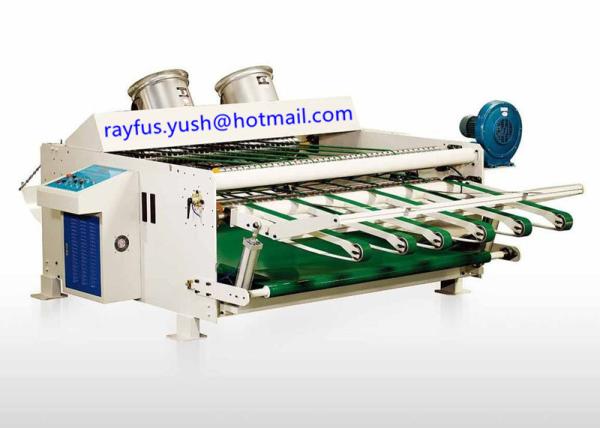

Vibrating Stripping Machine, for carton box Flexo Printer Slotter Die-cutter Stacker machine
Vibrator Stripping Machine
Functional Specifications:
1) Collecting arms pneumatic lifting, adjustable individually.
2) Vibrating stripping to clear the cutting scraps, equipped with blower to achieve best stripping function.
3) Equipped with bottom belt to collect waste scraps and output easily.
Automatic Flexo Printer Slotter Die-cutter Stacker
(Lead-edge Feeding, 1~5 colors printing, Computer-control)
Functional Specifications:
Technical Parameters:
Model | 920 | 1224 | 1428 | 1632 |
Max Sheet Size | 920*2000mm | 1200*2400mm | 1450*2800mm | 1600*3200mm |
Min Sheet size | 300*600mm | 360*600mm | 450*700mm | 500*700mm |
Max Printing Area | 920*1800mm | 1200*2200mm | 1450*2600mm | 1600*3000mm |
Min Slotting Distance | 155*155*155*155mm | 165*165*165*165mm | 175*175*175*175mm | 185*185*185*185mm |
Max Slot Depth | 230mm | 300mm | 360mm | 400mm |
Max Die-cutting Size | 800*1800mm | 1100*2200mm | 1350*2600mm | 1500*3000mm |
Max Stacking Height | 1500mm | 1500mm | 1500mm | 1500mm |
Design Speed | 180pcs/min | 180pcs/min | 150pcs/min | 150pcs/min |
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
![]() |
