    High Table Carton Box Manufacturing Machine / Surface Paper Flute Laminator Machine

    Ask Lasest Price
    Brand Name : YUSH
    Model Number : BZJ-B
    Certification : CE
    Price : USD 20,000~30,000 per set
    Payment Terms : T/T
    Supply Ability : 30 sets per month
    Delivery Time : 15~30 working days
    • Product Details
    • Company Profile

    High Table Carton Box Manufacturing Machine / Surface Paper Flute Laminator Machine

    Semi-auto High-table Flute Laminator, cardboard sheet laminate with surface paper, high precision


    Semi-auto High-table Flute Laminator


    Functional Specifications:

    1. Adopts bottom paper vacuum adsorption feeding, surface paper manual feeding. Easy operation, accurate transmission, bottom & surface paper photoelectric control, special front gauge fix position, bottom paper never go ahead.
    2. The pressing part adopt suspension roller pressing, to keep the board uniform stress, steady conveying, making the board beautiful and smooth, pressing belt could move front & behind, suitable for many kinds of paperboard sizes.
    3. All the machine main components adopt the famous company original products, to guarantee long use life and nice stability.

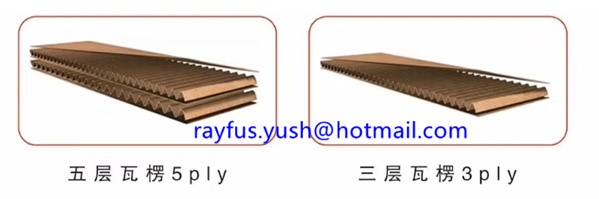

    4. Full-automatic model 3-ply or 5-ply corrugated cardboard laminator machine as optional.

    Technical Parameters:


    Model130014501600
    Max Sheet Size1300*1100mm1450*1100mm1600*1200mm
    Min Sheet Size360*360mm
    Surface Paper≥150gsm
    Bottom SheetCorrugated Cardboard or Paperboard ≥ 350gsm
    Laminating Precision±1mm
    Design Speed100pcs/min
    Weight4000kg4500kg5000kg
    Dimension12000*2000*1800mm12000*2150*1800mm12000*2300*1800mm


    YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

    Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
