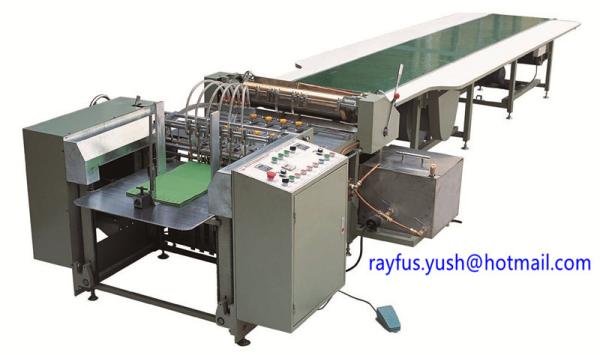

    Paper Sheet Flute Laminator Machine Auto Suction Feeder Size Customized

    Ask Lasest Price
    Brand Name : YUSH
    Model Number : ZG-A
    Certification : CE
    Price : USD 15,000~20,000 per set
    Payment Terms : T/T
    Supply Ability : 15 sets per month
    Delivery Time : 30~60 working days
    • Product Details
    • Company Profile

    Paper Sheet Flute Laminator Machine Auto Suction Feeder Size Customized

    Automatic Feeding Paper Sheet Pasting Machine, auto suction feeder, hot-melt glue or cold glue

    Automatic Feeding Paper Sheet Pasting Machine


    Functional Specifications:

    1. ZG-A Automatic Paper Feeding Pasting Machine adopts latest independent design style sheet paper feeder system, new feeder action agencies to ensure long-term stability, paper full throughout suction conveying, no skew conveyor, suitable various kinds of paper size.
    2. Paper positioning system adopts high precision guide, with magnetic side baffle, to ensure paper automatically on the positive, flexible and secure, and paper back and forth stack part adjustable, to ensure consistent degree of coincidence.
    3. Conveyor ball design, full pressing smooth transmission, with no skew.
    4. Glue supply system adopts professional frequency adjustment gear pump, to ensure stable supply of glue while high-strength rapid operation, circular design, significantly reduce the loss of glue. High-precision adjustable glue roller, easy operation, glue pasting more uniform and save glue.
    5. Circulating glue tank, with indirect heating and temperature control system, to ensure the glue suitable viscosity stable for a long time, built-in cleaning system, could finish cleaning within five minutes.
    6. Conveyor device with suction system, separate paper and stable suction delivery, convenient location, to ensure the entire line flow process.

    Technical Parameters:


    Model650750850
    Max Sheet Width80~600mm80~700mm80~800mm
    Paper Thickness80~250gsm
    Cardboard Thickness1~4mm
    Design Speed40pcs/min
    Weight1600kg1800kg2000kg
    Dimension6000*1500*1500mm7000*1700*1500mm8000*1900*1500mm
